Install the smart water leak detector

Proceed as follows to install your WL4210/WL4210S/WL4210C smart water leak detector

Installing your device
near risky areas

Make sure you have all the items that are included in the box

  • WL4210 or WL4210S or WL4210C Water leak detector
  • Installation guide – French version
  • Installation guide – English version
  • 2 AAA lithium batteries
  • 2 double-sided tights

Connection to Sinopé's smart water valve

Here is a detailed step-by-step guide that will take you through the connection of your WL4210 smart water leak detector with the Sinopé 2nd generation smart water valve.

1

The mode switch of the valve must be in position « 1 ». The valve must be plugged into a power outlet.

2

Press the « B » button to open the network connectivity session for the detectors. The indicator lights will light up in sequence to indicate that the session is active.

3

Connect the detector to the network from its installation location. This will ensure it is within range of RF signal of the valve. Remove the cover and insert the batteries.

4

Press the detector’s connection button.

Light Status
Green light blinksDevice is connecting
Green light lit for 10 sSuccessful connection
Red light blinksConnection has failed
5

Press the « B » button on the valve to close the connectivity session.

The connection can be verified at any time by pressing the water leak detector’s button. The indicator light will light up in green for 10 seconds if the unit is connected.

Follow the installation steps

Here is a detailed step-by-step guide that will take you through the installation of your smart water leak detector with probe (WL4210S) or with perimeter cable (WL4210C).

1

Connect the probe or the perimeter cable to the detector.

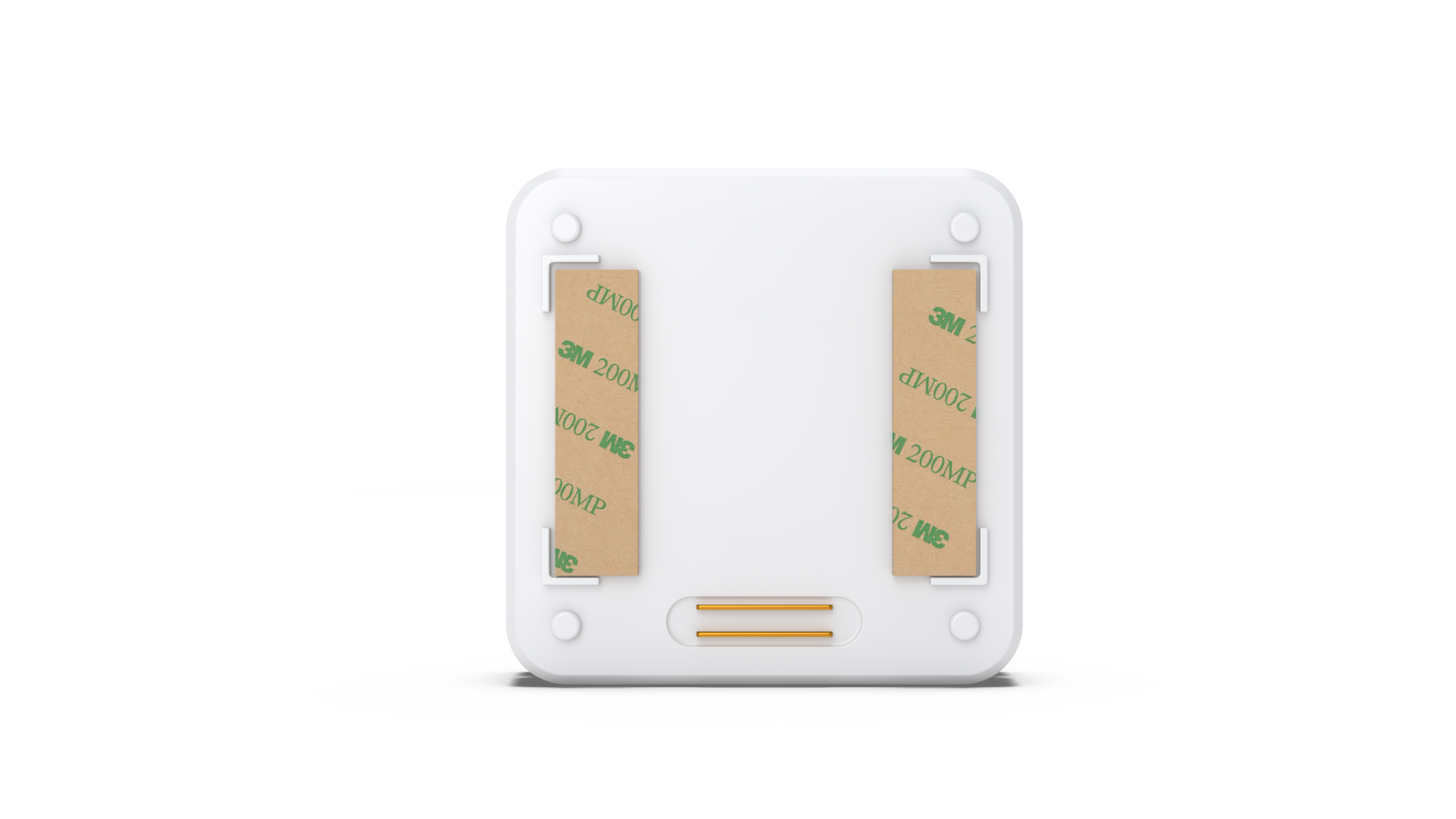

WL4210S water leak detector with double-sided tights
2

Attach the detector to a clean surface where there is no risk of immersion. Use the non-permanent adhesive located on the back of the product.

3

Put down the sensor or attach it to the wall. The electrodes must face the ground.

For the perimeter cable, put it on the ground or place it in the desired location. You can attach it with the supplied fasteners, which can be fastened with screws or the self-adhesive tape.

4

Test the detector by putting the electrodes or the perimeter cable in contact with a small amount of water (1 tsp). The audible alarm will be activated. Wipe the electrodes or the perimeter cable with a dry cloth to cease the alarm.

Connection to a Zigbee compatible system

It is also possible to connect your water leak detector to a Zigbee compatible system.

Follow the steps >
WL4210 smart water leak detector

Get to know your smart water leak detector

You can now start configuring your water leak detector.

WL4210/WL4210S/WL4210C configuration >
