Proceed as follows to install the decorative mounting plate
Proceed as follows to install the decorative mounting plate
Here is a detailed step-by-step guide that will take you through the installation of the HVAC decorative mouting plate.
It is highly recommended to hire a qualified professional to ensure a safe and effective installation of the HVAC thermostat and the connection module to the HVAC system. Installing these components requires technical expertise and a thorough understanding of the applicable standards in your region.

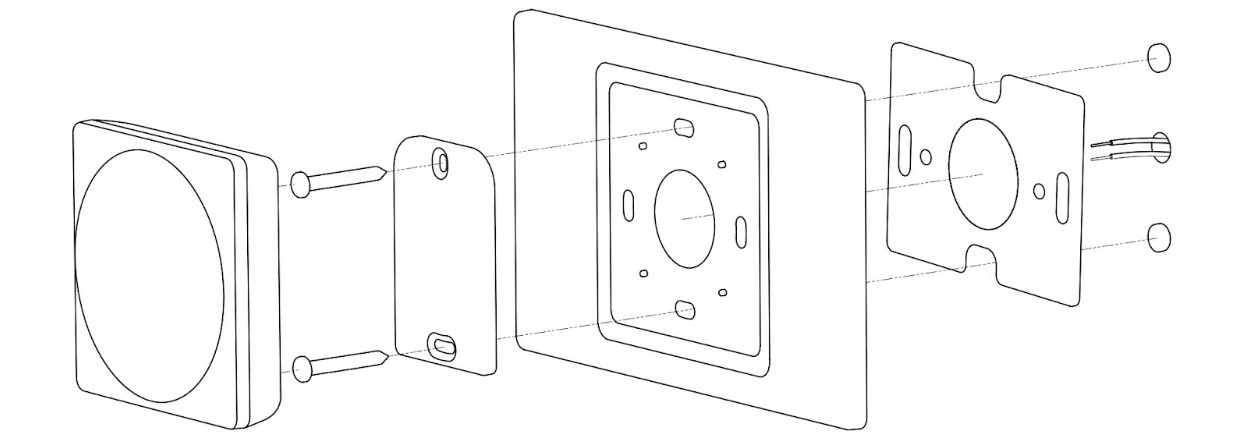

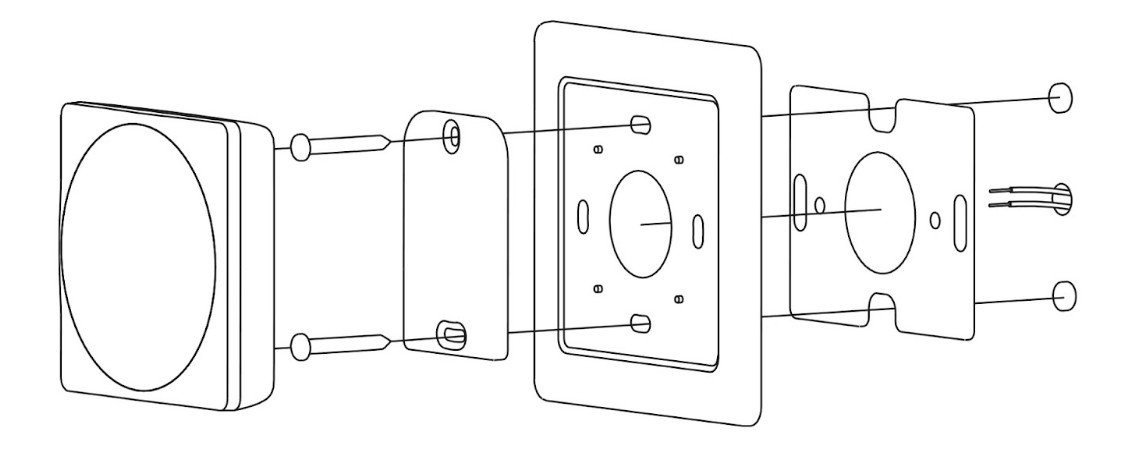

Assemble the thermostat base, mounting plate, and steel plate, then thread the wires through the opening.
Hold the mounting plate against the wall and use the spirit level integrated into the thermostat base to ensure everything is properly aligned.
Secure the plate to the wall using the screws provided with your thermostat.

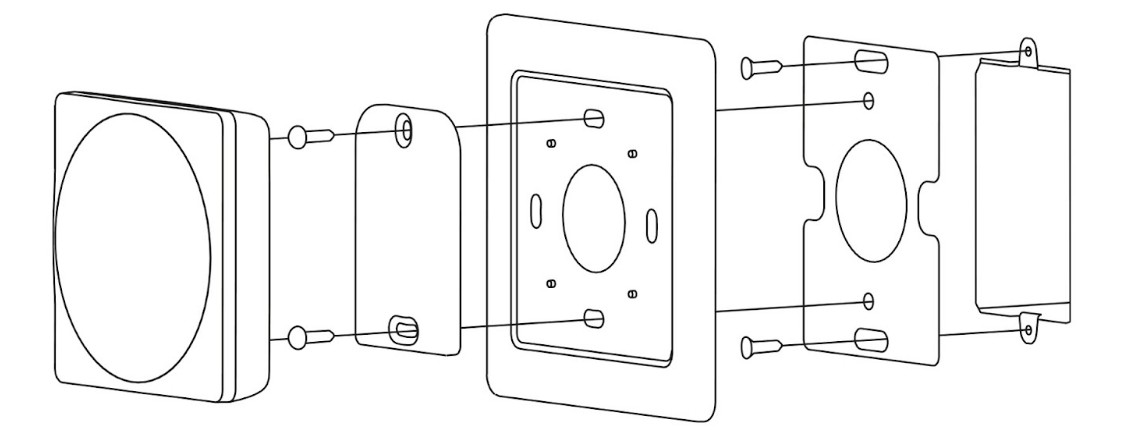

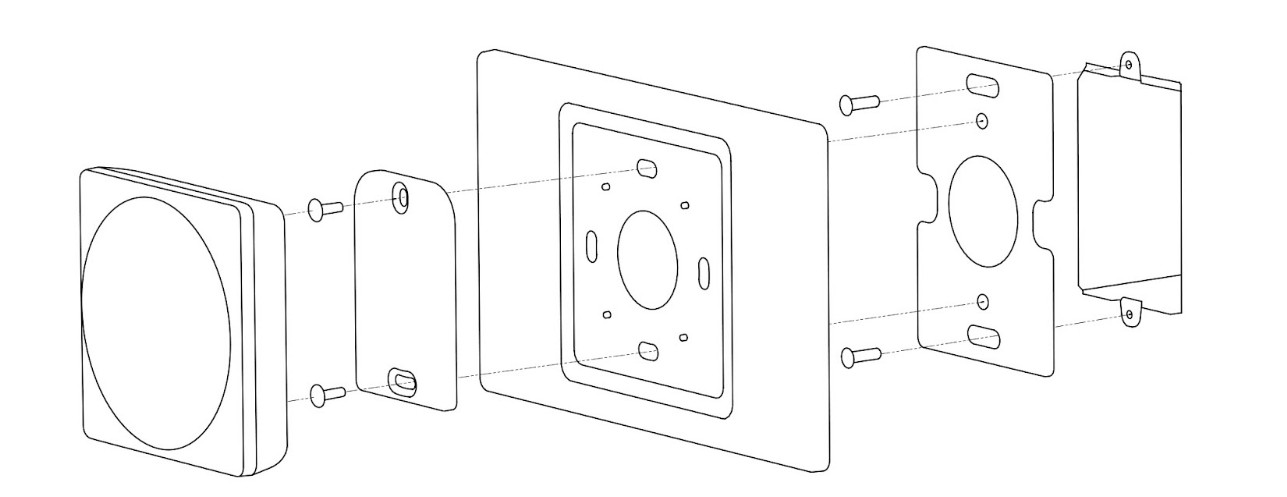

Thread the thermostat wires through the opening of the steel plate, then attach the plate to the electrical box using the two long screws provided with the decorative mounting plate.
Next, assemble the thermostat base and mounting plate, and attach them to the steel plate using the two short screws provided with the decorative mounting plate.
Use the spirit level integrated into the thermostat base to check alignment, adjust if necessary by loosening the screws and rotating the thermostat base, then tighten the screws.
