Install a line voltage thermostat

Proceed as follows to install your line voltage thermostat

Install a line voltage thermostat

Proceed as follows to install your line voltage thermostat

Installing your thermostat
on the wall

Make sure you have all the items that are included in the box

Smart line voltage thermostat TH1134ZB/HC
Installation guide – English version
Installation guide – French version
2 mounting screws
2 wire connectors

You will also need:

Phillips screwdriver
Wire stripper (optional)

Follow the installation steps

Here is a detailed step-by-step guide that will take you through the installation of your line voltage thermostat.

The installation of this thermostat must be performed by a certified electrician and comply with the national and local electrical codes and regulations.

Special CO/ ALR solderless connectors must be used
when connecting with aluminum conductors.

The warranty does not cover damage to the thermostat due to improper installation.

Make sure that the breakers for your heating system are off at the main electrical panel to avoid any risk of electric shock.

Unlock and lift the thermostat cover.

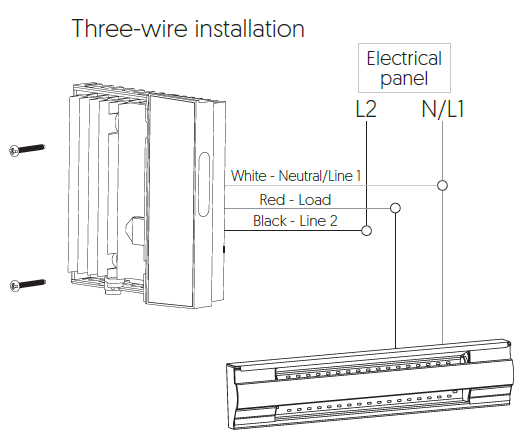

Use the connectors provided to connect the thermostat wires to the wires in the electrical box. Use the screws to secure the thermostat to the electrical box.

Note: To control a ductless air conditioner and heat pump unit, you will need to install an HP6000ZB series controller.

Make sure to firmly tighten the wire connectors for a secure connection. A loose connection can be a fire hazard.

To install wire connectors, you must:

1. Insert the two wires into the wire nut so that their copper ends are parallel.
2. Turn the wire connector clockwise until there is strong tension.
3. Pull on the threads to make sure they are secure, leaving no gaps between them. * If the threads seem to come loose, repeat the process.
